Caracteristicas

Especificaciones

Tipo: Extrusor de hoja

Plástico procesado: educación física

Tipo de producto: Máquina de moldear de protuberancia

Modo de alimentación: Una alimentación

Estructura de ensamblaje: Extrusor de tipo separado

Tornillo: Un solo tornillo

Resaltar:

Fiberglass Reinforced Heat Shrinkable Tape Equipment

Low Energy Consumption PE Heat Shrink Tape Production Line

High Automation Radiation Cross-Linked Polyethylene Tape Line

Información básica

Lugar de origen: Qingdao, China

Nombre de la marca: Huashida

Certificación: ISO9001: 2008

Número de modelo: HSD SESG-700

Pago y Envío Términos

Detalles de empaquetado: Paquete estándar

Tiempo de entrega: 90 dias

Condiciones de pago: LC, T/T

Capacidad de la fuente: 50 unidades/mes

Galería

Fiberglass Reinforced Radiation Cross-Linked Polyethylene Heat Shrinkable Tape Equipment with Low Energy Consumption and High Automation

Descripción de producto

Manufacturer of Radiation Cross-Linked Polyethylene Heat Shrinkable Tape Equipment

Name: Fiberglass Reinforced Radiation Cross-Linked Polyethylene Heat Shrinkable Tape Equipment with Low Energy Consumption and High Automation
Brand: Qingdao Huashida Machinery Co., Ltd.
SKU: HSD SESG-700
Availability: InStock

Manufacturer of Radiation Cross-linked Polyethylene Heat Shrinkable Tape Equipment

The heat shrinkable tape and other products produced by our heat shrinkable tape production line are widely used in municipal pipelines, oil and gas pipelines, and corrosion protection of ordinary steel pipes. Commonly used pipelines include hollow wall spiral wound pipes, steel-reinforced spiral corrugated pipes, plastic-steel spiral wound pipes, double-flat-wall plastic-steel spiral wound pipes, PVC-U sewage pipes, polyurethane foam insulated pipes (black and yellow jacket pipes), 3PE steel pipes, and other steel pipes.

Fiberglass Reinforced Radiation Cross-Linked Polyethylene Heat Shrinkable Tape Equipment with Low Energy Consumption and High Automation 0

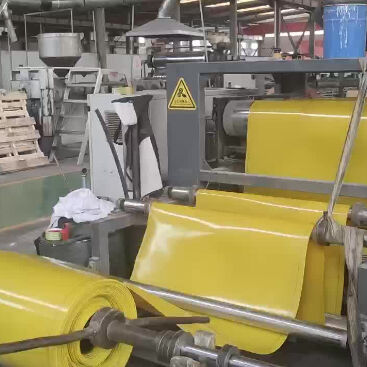

The heat shrinkable tape production line consists of an LDPE substrate extrusion production line, a heat shrinkable tape coating production line, heat shrinkable sleeve processing equipment, and auxiliary equipment. This unit has low energy consumption, low noise, controllable production speed, and a high degree of automation.

Fiberglass Reinforced Radiation Cross-Linked Polyethylene Heat Shrinkable Tape Equipment with Low Energy Consumption and High Automation 1

New Product Introduction: The fiberglass reinforced heat shrinkable tape production line is based on the existing unit, adding fiberglass unwinding equipment, fiberglass heating and leveling equipment, a 65/30 single-screw extruder, and a special T-shaped flat-head die, etc. This production line can continuously form three-layer fiber-reinforced heat shrinkable tape in one pass, with fast production speed, high yield, and low energy consumption.

The successful development of the fiberglass reinforced heat shrinkable tape production line represents a relatively advanced production line for fiber-reinforced heat shrinkable tape.

The heat shrinkable tape production line first produces qualified substrate from an LDPE substrate extrusion line. Then, a professional heat shrinkable tape irradiation center selects an appropriate irradiation dose for radiation cross-linking treatment, giving the substrate good fire resistance and strength.

The irradiated substrate is then fed into the heat shrinkable tape coating line for coating. This process first involves secondary stretching of the heat shrinkable tape substrate to ensure good shrinkage rate in the finished product. Then, a uniquely formulated hot melt adhesive is extruded from a reaction vessel and bonded to the substrate, resulting in a high peel strength.

Based on actual production needs and market demand, the heat shrinkable tape production line can produce heat shrinkable tape, sleeve-type heat shrinkable sleeves, and clip-on heat shrinkable sleeves, among other products.

Technical Specifications: Main Equipment List:

Environmental conditions
Working place	Indoor
Power source	No dangerous area
Humidity	85% 85% no condensation
Use Conditions
Power supply	380V 50HZ(-10%,+5%)
Circulating cooling water	~0.5m3/min(≤20ºC,0.3Mpa)
Compressed air	~0.4m3/min , >0.5Mpa

Equipment List

Main motor: ABB
Low -voltage electrical appliance:
Electrical control system:Siemens

RS-800 RS-800 PE Backing extrusion line 150-200kg/h
1.	Automatic vacuum feeder	1 Set
2	Hopper Dryer	1 Set
3	SJ-90x30 SJ-90×30 single screw Extruder	1 Set
4	T T-Die mold	1 Set
5	Hydraulic filter screen changer	1 Set
6	3-Roller calender	1 Set
7	Roller temperature control system	1 Set
8	Cooling Bracket with lengthways cutting device	1 Set
9	Haul-Off Unit	1 Set
10	Coiler	1 Set
11	Electric control system Siemens	1 Set

TJ-700 B.TJ-700 adhesive coating line
1	Unpowered uncoil device(adding a seperate uncoiler )	2 Set
2	PE backing stretching unit	1 Set
3	Reactor 300L	1 Set
4	Adhesive coating roller	1 Set
5	Cooling water tank	1 Set
6	Haul-Off Unit	1 Set
7	Digital meter counter	1 Set
8	Coiler	1 Set
9	Electric control system Siemens	1 Set

Continuous innovation! For a better customer experience!

1. A single-screw extruder utilizing multiple new technologies, resulting in low energy consumption, high output, and long service life!

2. Utilizing new direct-connection technology, every unit of electricity you use translates into profit!

3. Advanced T-shaped molds and coat hanger-style flow channels ensure more uniform thickness of the heat shrinkable tape substrate, saving you raw materials!

4. High-precision mirror rollers ensure the quality of the heat shrinkable tape substrate, reducing your scrap rate!

5. Patented online secondary stretching equipment further enhances the quality of your heat shrinkable tape products!

6. Multi-functional! One set of equipment can produce multiple heat shrinkable tape products, avoiding redundant equipment investment!

7. The accessories and auxiliary equipment used in our equipment utilize the latest technology products from high-quality suppliers, always staying ahead of the curve! We are leaders, not followers!

Payment terms:

30% of the contract amount as deposit within 2 working days after signing the contract.
67% of the contract amount before delivery the goods.
3% of the contract amount within 10 days after finishing the installation and commission.

Delivery time

The seller will get the production line ready and deliver the goods within 90 days after receiving the deposit.

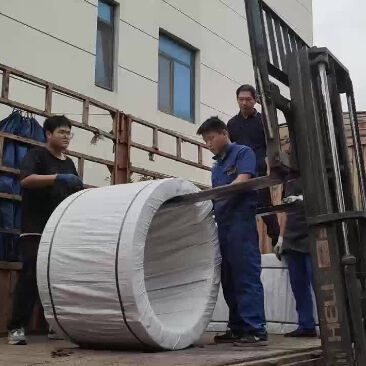

Packing by wrap film. If wooden pallets or wooden cartons are required, the packaging costs shall be borne by the buyer.

Fiberglass Reinforced Radiation Cross-Linked Polyethylene Heat Shrinkable Tape Equipment with Low Energy Consumption and High Automation 7

Technical After-Sales Service

Quality warranty

The mechanical part's warranty:12 months from the date of buy's receiving the equipment.
The electric appliance's warranty: 6 months from the date of buy's receiving the equipment.
Fiberglass Reinforced Radiation Cross-Linked Polyethylene Heat Shrinkable Tape Equipment with Low Energy Consumption and High Automation 9

Service

The seller provides the technical service and related electrical drawings with free, and trains the buy's staff.

Installation and commissioning

The seller can send enough technicians to the buyer's company for guiding the installation and commissioning the lines. The round trip ticket, accommodation, transportation, medicine treatment and insurance caused by the seller's experts in buyer's country and 150 US dollars per person per day will be covered by the buyer.

Fiberglass Reinforced Radiation Cross-Linked Polyethylene Heat Shrinkable Tape Equipment with Low Energy Consumption and High Automation 10

Fiberglass Reinforced Radiation Cross-Linked Polyethylene Heat Shrinkable Tape Equipment with Low Energy Consumption and High Automation 11
